KFI Assault Winch 5000LB
A model specific winch mount is required to be purchased to fit this to your ATV or UTV.
* New superior 5000lb winch model, supplied standard with an 11m synthetic cable, handheld corded remote (4m), UTV dash rocker switch, and a split cable hook stopper. *
The split cable hook stopper has the following benefits:
- stops wear and tear on your rollers from the hook which can cause cable wear
- protects the winch motor and gears from pulling the cable in too far
- keeps the tension to stop the cable from coming loose
- has slits designed to work as an anti-kick back for the cable in case it was to snap
A reliable winch is about the most important accessory a rider can have. These are made under licence by KFI in China and imported direct from the USA, the popular KFI winches are now available in NZ from TRAX Equipment.
Equip yourself with one of these and feel confident you can pull yourself out of any situation! Tested in all extremes and conditions these superior quality winches are guaranteed to give a long, reliable life of consistent use on your UTV.
No compromise on value, packed with features and likely to be the most competitively priced, compact winch of this value you will find anywhere - compare with other brands!

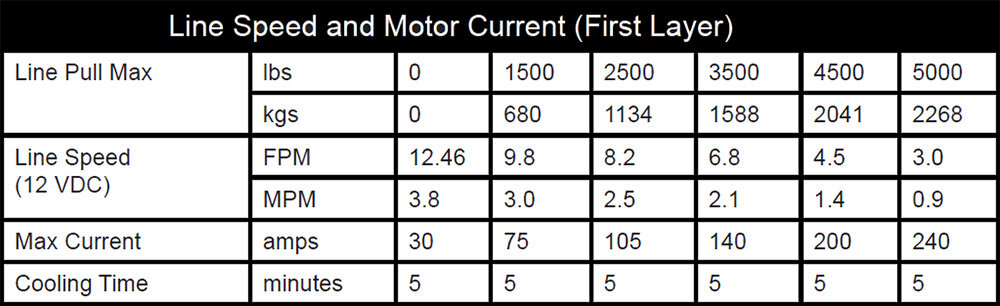

Specifications:
- Model: AS-50 Series
- Rated Line Pull 5000lbs/2265kgs
- Motor: 12V DC, 1.22 hp Permanent Magnet
- Gear Ration: 180:1
- Gear/Transmission: All-metal Planetary Gear Drive
- Brake: Dynamic and Mechanical
- Clutch (free spooling): All Metal Cam Activated Freespool
- Drum Size: 44.45mm (D) x 81mm (L)
- Synthetic Cable: 6mm (D) x 11m (L)
- Fairlead: Multi-directional POM Roller
- Control: Deluxe Dash Mounted Control Switch and a Heavy Duty Corded Remote Switch
- Winch Dimensions: 353mm (L) x 113mm (D) x 121mm (H)
- Mount Plate: Fairlead Mount Only (A Model Specific Mount is necessary for your make and model UTV)
- Mounting Bolt Pattern: 3.00" x 4.875" (76.2mm x 123.8mm) (4-Hole)
- Recommended Battery: 12 Amp/hour minimum
- Warranty: Limited 2 Year
- Winch Weight: 26.0 lbs / 11.8 kgs. (complete kit)
